RpiDNS

Overview

RpiDNS is a comprehensive DNS-based ad-blocking and security monitoring application powered by ioc2rpz.net. It provides a central management interface for monitoring and controlling DNS traffic across your entire network using Response Policy Zones (RPZ) to block malicious domains, advertisements, trackers, and other unwanted content at the DNS level.

The system integrates with ISC BIND DNS server and provides real-time visibility into all DNS queries originating from devices on your network.

Key capabilities include:

• DNS Query Monitoring - Comprehensive tracking of all DNS queries from every device on your network
• Ad & Malware Blocking - Automatic blocking using RPZ feeds from ioc2rpz.net
• Custom Block/Allow Lists - Full control over domain blocking with your own custom rules
• Network Asset Tracking - Automatic discovery and tracking of devices by MAC or IP address
• Security Analytics - Detailed statistics and visualizations for threat analysis

Deployment Options

RpiDNS supports two deployment models:

1. On-Premises Installation - Direct installation on Raspberry Pi or Linux server
2. Container Deployment - Docker-based deployment (recommended for portability)

Container Deployment

The container deployment provides a lightweight, portable way to run RpiDNS using Docker.

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                        Host System                               │
│  ┌─────────────────────────────────────────────────────────┐    │
│  │              Docker Network: rpidns-net                  │    │
│  │  ┌─────────────────────┐  ┌─────────────────────────┐   │    │
│  │  │   Bind Container    │  │     Web Container       │   │    │
│  │  │   ───────────────   │  │   ─────────────────     │   │    │
│  │  │   ISC Bind9 + RPZ   │  │   OpenResty + PHP-FPM   │   │    │
│  │  │   Port 53 TCP/UDP   │  │   + RSyslog             │   │    │
│  │  │                     │  │   Ports 80, 443, 10514  │   │    │
│  │  └─────────────────────┘  └─────────────────────────┘   │    │
│  └─────────────────────────────────────────────────────────┘    │
│                                                                  │
│  ┌─────────────────────────────────────────────────────────┐    │
│  │                  Persistent Volumes                      │    │
│  │  ./config/bind  ./config/nginx  ./www  ./logs  ./scripts│    │
│  └─────────────────────────────────────────────────────────┘    │
└─────────────────────────────────────────────────────────────────┘

Container Components

Container	Base Image	Purpose	Key Packages
Bind	Alpine 3.21	DNS resolution with RPZ blocking	bind, bind-tools, rsyslog
Web	Alpine 3.21	Web UI, log collection	openresty, php83-fpm, php83-sqlite3, rsyslog, dcron

Quick Start

https://ioc2rpz.net community generate install scripts for container and non-container based deployments. For manual deployment follow the instruction below.

# 1. Create directory structure
mkdir -p rpidns && cd rpidns
mkdir -p config/bind config/nginx www www/db logs scripts bind-cache

# 2. Copy docker-compose.yml from rpidns-docker directory

# 3. Create .env file
cat > .env << EOF
RPIDNS_HOSTNAME=rpidns.local
RPIDNS_DNS_TYPE=primary
RPIDNS_DNS_IPNET=192.168.0.0/16
RPIDNS_LOGGING=local
RPIDNS_LOGGING_HOST=
EOF

# 4. Start containers
docker-compose up -d

# 5. Verify deployment
docker-compose ps
dig @localhost example.com

Environment Variables

Variable	Default	Description
RPIDNS_HOSTNAME	rpidns.local	Hostname for the RpiDNS instance
RPIDNS_DNS_TYPE	primary	DNS server type: primary or secondary
RPIDNS_DNS_IPNET	192.168.0.0/16	IP network for DNS ACL
RPIDNS_LOGGING	local	Logging mode: local or forward
RPIDNS_LOGGING_HOST	(empty)	Remote syslog host (when forward mode)
RPIDNS_ADMIN_PASSWORD	(auto-generated)	Admin password for web UI

Exposed Ports

Port	Protocol	Container	Description
53	TCP/UDP	Bind	DNS queries
80	TCP	Web	HTTP web interface
443	TCP	Web	HTTPS web interface
10514	TCP	Web	Syslog receiver

For detailed container deployment documentation, see rpidns-docker/README.md.

User Interface

Getting Started

Logging In

To access RpiDNS, navigate to the URL where RpiDNS is hosted on your network. Enter your credentials:

• Username - Your assigned username (case-sensitive)
• Password - Your account password (case-sensitive)

Your session remains active until you explicitly log out or close your browser.

Navigation

RpiDNS features a tab-based navigation system with a vertical sidebar on desktop and horizontal layout on mobile:

Tab	Description
Dashboard	Real-time overview of DNS activity with statistical widgets and traffic charts
Query Log	Searchable log of all DNS queries with filtering and aggregation
RPZ Hits	Dedicated view of blocked DNS queries by RPZ rules
Admin	Configuration and management tools (Assets, Feeds, Block/Allow Lists, Settings, Tools, Users)
Help	Comprehensive documentation and guidance

The navigation menu can be collapsed to show only icons for more screen space.

User Menu

Located in the top-right corner, the user menu provides:

• Change Password - Update your account password
• Logout - Securely sign out and terminate your session

---

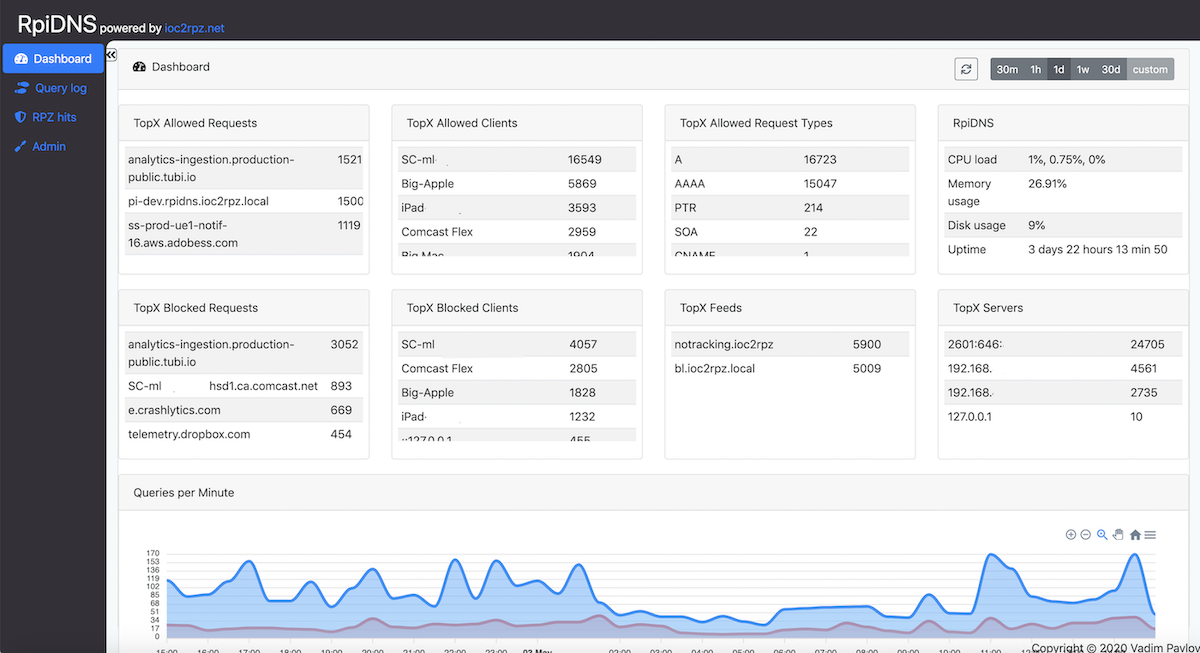

Dashboard

The Dashboard is your central command center for monitoring DNS activity. It displays statistical widget cards and a queries-per-minute chart.

Time Period Selection

Period	Description
30m	Last 30 minutes - ideal for real-time monitoring
1h	Last hour
1d	Last 24 hours - understand daily patterns
1w	Last 7 days - analyze weekly trends
30d	Last 30 days - long-term trend analysis
custom	Select specific start and end date/time

Auto-Refresh: Toggle the "Auto" switch to enable automatic refresh every 60 seconds.

Dashboard Widgets

Allowed Traffic (Top Row):

Widget	Description
TopX Allowed Requests	Most frequently requested domains that were allowed. Helps understand commonly accessed services.
TopX Allowed Clients	Devices generating the most allowed queries. Identifies most active devices.
TopX Allowed Request Types	DNS record types (A, AAAA, CNAME, MX, TXT, etc.). Unusual distribution might indicate DNS tunneling.
RpiDNS Stats	Server metrics: CPU load, memory usage, system uptime.

Blocked Traffic (Bottom Row):

Widget	Description
TopX Blocked Requests	Domains most frequently blocked by RPZ. High-frequency blocks often include ads and malware.
TopX Blocked Clients	Devices triggering the most blocks. High counts may indicate malware or aggressive advertising.
TopX Feeds	RPZ feeds responsible for most blocks. Understand which threat categories affect your network.
TopX Servers	DNS servers handling the most queries. Useful for load distribution analysis.

Interactive Actions

Hover over items in widgets to reveal action buttons:

• Show queries - Navigate to Query Log filtered by the selected item
• Show hits - Navigate to RPZ Hits filtered by the selected item
• Block - Add domain to your custom Block List
• Allow - Add domain to Allow List (overrides RPZ blocks)
• Research - Open external security research tools

Queries per Minute Chart

Visual representation of DNS query volume over time:

• Blue area - Allowed (successful) DNS queries per minute
• Red area - Blocked queries (RPZ hits) per minute

Hover over any point to see exact timestamp and query counts.

---

Query Log

The Query Log provides a comprehensive, searchable record of all DNS queries processed by your DNS server.

Logs vs Stats View

Mode	Description
Logs	Individual query records with timestamps. Ideal for investigating specific incidents.
Stats	Aggregated statistics grouped by selected fields. Use checkboxes to configure grouping.

Tip: Start with Stats view to identify patterns, then switch to Logs view to investigate specific items.

Table Columns

Column	Description
Local Time	Timestamp when query was received (Logs view only)
Client	Device that made the query (friendly name or IP/MAC)
Server	DNS server that processed the query
Request	Fully qualified domain name (FQDN) queried
Type	DNS record type (A, AAAA, CNAME, MX, TXT, PTR, SRV, NS)
Class	DNS query class (typically "IN" for Internet)
Options	Additional DNS query options and flags
Count	Number of queries (Stats view) or 1 (Logs view)
Action	Allow or Block status

Filtering

Simple Text Search: Type any text to search across all columns (case-insensitive).

Field-Specific Filters:

• fqdn=example.com - Filter by domain name
• client_ip=192.168.1.100 - Filter by client IP address
• mac=AA:BB:CC:DD:EE:FF - Filter by MAC address
• type=A - Filter by DNS record type
• server=dns1 - Filter by DNS server

---

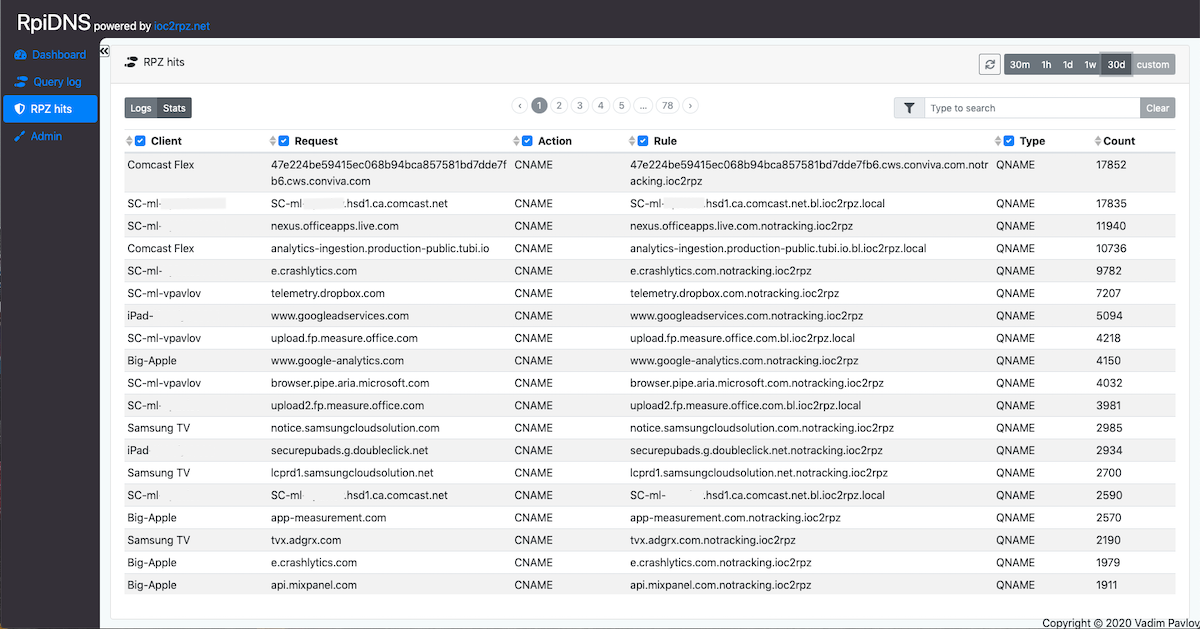

RPZ Hits

The RPZ Hits section shows all DNS queries blocked by Response Policy Zone rules. Blocks originate from RPZ feeds (curated threat lists) and your custom Block List.

Table Columns

Column	Description
Local Time	Timestamp when blocked query occurred (Logs view only)
Client	Device that attempted to access the blocked domain
Request	Domain name that was blocked
Action	RPZ action applied (NXDOMAIN, NODATA, etc.)
Rule	Specific RPZ rule that triggered the block (includes feed name)
Type	Rule type (QNAME, RPZ-IP, RPZ-NSDNAME, RPZ-NSIP, RPZ-CLIENT-IP)
Count	Number of times this block occurred (Stats view)

Investigation Workflow: Check RPZ Hits for suspected devices. Multiple blocks to similar domains might indicate malware trying to contact command and control servers.

False Positives: If a legitimate domain is blocked, add it to your Allow List. Allow List entries take precedence over all RPZ feed rules.

---

Administration

Assets

Manage network devices tracked by RpiDNS. Assets can be automatically discovered or manually added.

Column	Description
Address	MAC or IP address (depending on tracking mode)
Name	Friendly name for easy identification
Vendor	Hardware manufacturer (auto-detected from MAC)
Added	Date/time when asset was first seen
Comment	Optional notes about the device

Actions: Add, Edit, Delete, Refresh

Tracking Mode: MAC address tracking is recommended (consistent even when IPs change). Configure in Settings.

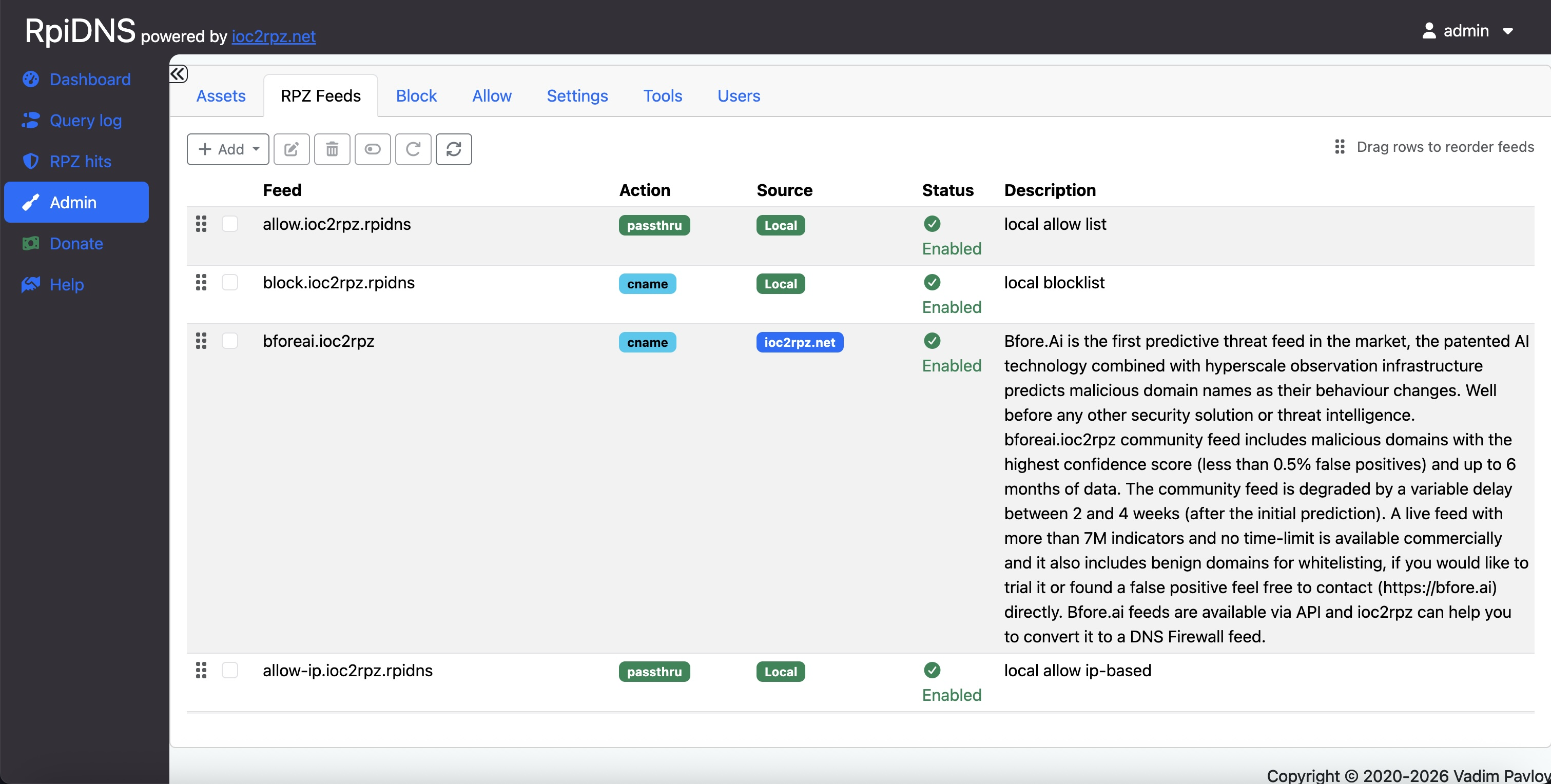

RPZ Feeds

Manage RPZ feeds that control DNS-level blocking. Feed order is critical - BIND evaluates feeds top to bottom, first match wins.

Feed Source Types:

Type	Description
ioc2rpz.net	Open source threat intelligence feeds, auto-updated via zone transfers
Local	Custom feeds you create and manage directly
Third-Party	External RPZ feeds from other providers

Policy Actions:

Action	Description
NXDOMAIN	Returns "domain does not exist" - most common blocking action
NODATA	Domain exists but has no records of requested type
PASSTHRU	Allow query to proceed (for whitelist feeds)
DROP	Silently drop query without response
CNAME	Redirect to different domain (e.g., block page)
GIVEN	Use action defined within feed rules

Block List

Custom collection of domains/IPs to block on your network.

Column	Description
Domain/IP	Domain name or IP address to block
Added	Date/time when entry was created
Active	Toggle to enable/disable the rule
*. (Subdomains)	Toggle to also block all subdomains
Comment	Optional notes about why domain was blocked

Allow List

Domains that should never be blocked, regardless of RPZ feed rules. Allow List entries take precedence over all blocking rules.

Same interface as Block List. Use for handling false positives where legitimate domains are incorrectly blocked.

Security Warning: Verify domains are safe before adding to Allow List. Use Research links to investigate.

Settings

Setting	Description
Data Retention	Days to keep data before automatic deletion (per table)
Automatically create assets	Auto-add new devices when they make DNS queries
Track assets by	MAC Address (recommended) or IP Address
Dashboard show Top	Number of items in Dashboard widgets

Tools

Tool	Description
CA Root Certificate	Download root CA for SSL certificates (eliminates browser warnings on block pages)
Database Download	Backup SQLite database with all RpiDNS data
Database Import	Restore from backup (overwrites current data)
bind.log	General DNS server operational logs
bind_queries.log	Raw DNS query logs in BIND format
bind_rpz.log	RPZ-specific logs for troubleshooting

User Management (Admin Only)

Column	Description
Username	Login name (case-sensitive, unique)
Admin	Administrator privileges status
Created	Account creation date

Actions: Add User, Reset Password, Delete

Note: Cannot delete the last administrator account to prevent lockout.

---

Research Tools

For threat hunting and false positive investigation, RpiDNS integrates with external research tools:

Tool	Description
DuckDuckGo	Privacy-focused search engine
Google	General search engine
VirusTotal	Domain/IP/URL malware validation with multi-engine scanning
RiskIQ Community	Passive DNS and digital footprint data
DomainTools Whois	Domain and IP registration information
Robtex	IP, domain, AS, routes information
Apility.io	Threat intelligence SaaS for abuse detection
ThreatMiner	IOC threat intelligence portal

Access Research tools by hovering over domains in Dashboard widgets or reports.

Scripts

Script	Description
rpidns_install.sh	Installation script for Raspbian
init_db.php	Database initialization
clean_db.php	Crontab script for DB cleanup
parse_bind_logs.php	Parse bind logs, save to DB, aggregate data

ISC Bind Configuration

RpiDNS requires ISC Bind configured with:

• DNS query and RPZ hit logging enabled
• Local RPZs: allow.ioc2rpz.local, allow-ip.ioc2rpz.local, block.ioc2rpz.local, block-ip.ioc2rpz.local

Built With

• Vue.js
• Bootstrap Vue
• Axios

Support the Project

• GitHub Sponsors (one-time, recurring)
• PayPal (one-time)

Contact

• Email: feedback(at)ioc2rpz[.]net
• Telegram

License

Copyright 2020-2026 Vadim Pavlov ioc2rpz[at]gmail[.]com

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.

You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.
