embabel-mcp

MCP integration for BioInsight Graph — the disease–target knowledge graph application (Neo4j, FastAPI, React explorer). This repo adds an Embabel MCP server so Cursor, Claude Desktop, and other clients can call the same /api/v1 surface the web UI uses.

BioInsight Graph is the product. embabel-mcp is not a replacement, fork, or “wrapper app” — it is agent tooling built on top of that API.

Built with Embabel Agent (embabel-agent-starter-mcpserver).

Data notice: Demo/sample Open Targets–style data only — not for clinical decisions.

Architecture

flowchart LR
  MCP[Cursor / Claude / Inspector]
  EMB[embabel-mcp :1337 /sse]
  API[bioinsight-graph API :8000]
  N4j[(Neo4j)]
  MCP --> EMB
  EMB --> API
  API --> N4j

Loading

How this fits the BioInsight platform

flowchart TB
  C[MCP client]
  E[embabel-mcp]
  BAPI[BioInsight API :8000]
  BWEB[BioInsight UI :8080]
  RAG[kg-rag-demo :8001]
  C --> E
  E --> BAPI
  BWEB --> BAPI
  E -. KG_RAG_ENABLED .-> RAG

Loading

BioInsight Graph UI

The primary interface — search, ranked associations, and force-directed graph exploration. Run it at http://localhost:8080 (see bioinsight-graph).

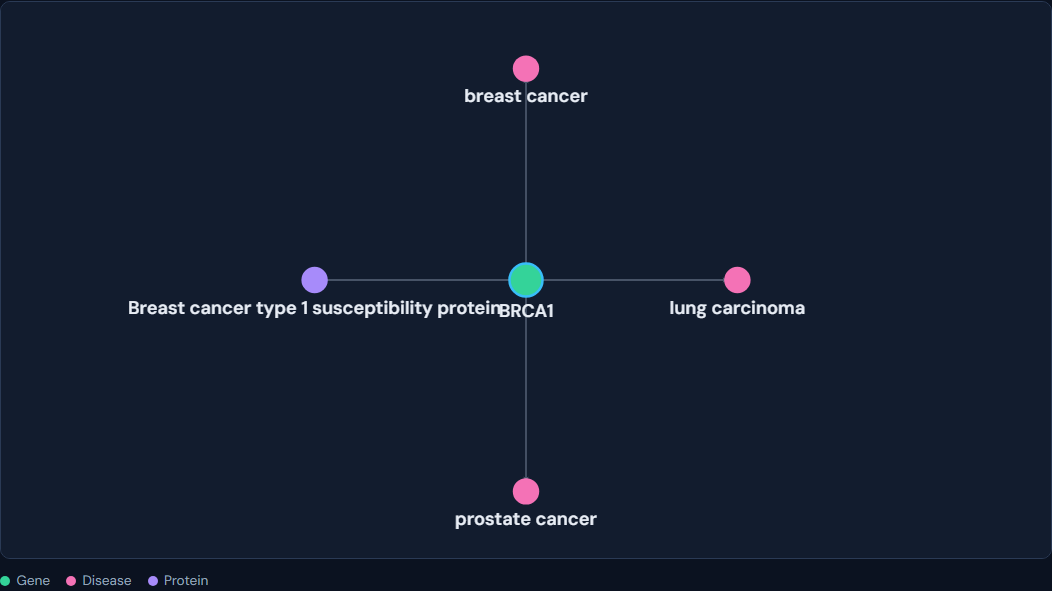

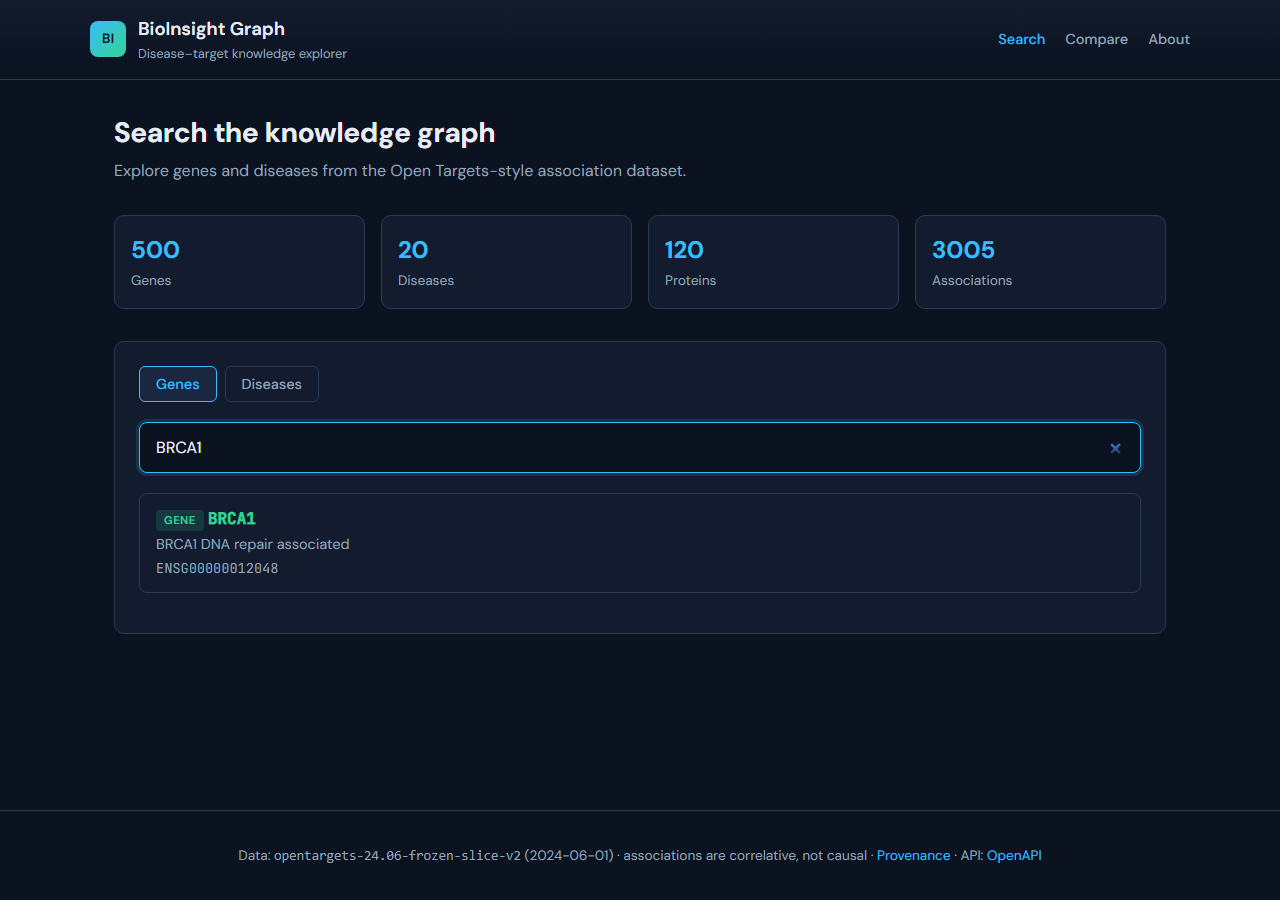

Search	Force-directed graph

Full gene detail: screenshot-gene-detail.png · Walkthrough: demo-walkthrough.gif

Embabel agent (Phase 3)

MCP export	Description
research_gene	GeneResearchAgent — parse symbol → load graph → markdown report + link to web UI

Starting inputs: GeneSymbolQuery (symbol string) or natural language via UserInput.

MCP tools

Most tools accept optional format: markdown (default) or json.

Tool	BioInsight API
bioinsight_health	GET /api/v1/health
bioinsight_stats	GET /api/v1/stats
search_genes	GET /api/v1/genes?q=
search_diseases	GET /api/v1/diseases?q=
get_gene	GET /api/v1/genes/{id}
get_gene_diseases	GET /api/v1/genes/{id}/diseases (ranked by score)
get_disease	GET /api/v1/diseases/{id}
get_disease_genes	GET /api/v1/diseases/{id}/genes (top targets)
compare_genes	GET /api/v1/genes/compare?symbols=BRCA1,TP53
get_gene_neighbors	GET /api/v1/genes/{id}/neighbors
export_gene_subgraph	GET /api/v1/export/subgraph?gene_id=
plan_investigation	JSON plan: intent, entities, tool sequence, stop rules (call before dossier)
resolve_identifier	GET /resolve
get_target_evidence	Gene–disease evidence breakdown or association scores (standard+)
get_gene_external_links	Ensembl, Open Targets, UniProt deep links (standard+)
export_provenance_bundle	M7 audit JSON: meta, queries, links, evidence sample (standard+)
batch_gene_lookup	Resolve many symbols/ids at once (BioInsight 3.4) (standard+)
export_gene_report	Analyst report with provenance columns (BioInsight 3.5) (standard+)
build_target_dossier	Full markdown handoff: detail + diseases + neighbors + stats + provenance + UI link
investigate_gene_symbol	search + detail + ranked diseases + neighbors (lighter than dossier)
plan_gap_investigation	GapForge plan (COU, L2 sequence, stop rules)
build_program_dossier	Stalled-program dossier (GET /programs/{id}/dossier)
propose_gap_hypotheses	List/create L2 cards (needs_review — HITL required)
run_critic	Adversarial critic on a gap id
export_review_bundle	Provenance export (team_conclusions = approved only)
export_approved_rdf	Turtle export for approved L2 gaps (GET /export/approved-rdf)
run_gap_discern	Persist Discern score on a stored gap (approve-gate source of truth)
run_gap_ontology_validate	Persist OntoHarness SHACL + vocab gate on a stored gap
discern_artifact	Universal I/O weigh: compliance / reliability / provenance / safety thresholds

OntoHarness (requires ONTOHARNESS_ENABLED=true, sidecar on :8010):

Tool	Description
validate_proposal	Validate raw Turtle (vocab gate + SHACL)
get_repair_hints	Validation repair hints for agent loops
bridge_gap_record	GapForge JSON → Turtle + optional validate
list_ontoharness_domains	Registered validation domains

Agent export: research_program_gaps · Prompt: investigate-stalled-program

MCP resources

URI	Description
bioinsight://schema	Graph model + example Cypher
bioinsight://meta	Live data version, sources, disclaimer (GET /api/v1/meta)
bioinsight://provenance	Dataset scope and link to PROVENANCE.md
bioinsight://stats	Live counts from the running API
bioinsight://ecosystem	All browser/API URLs (BioInsight, Neo4j, KG RAG, MCP)
bioinsight://investigation-playbook	Intent routing — which tool for gene vs disease vs compare vs literature

MCP prompts

Prompt	Use case
adaptive-gene-investigation	Plan → resolve → branch (ambiguous symbol / sparse evidence)
summarize-gene-targets	Gene-first: plan, resolve, dossier, summarize
compare-gene-pair	Compare path: plan, resolve both, compare_genes
top-targets-for-disease	Disease-first: plan, resolve disease, get_disease_genes
graph-and-literature	Dual-channel: dossier first; kg_rag_ask only if sparse or literature question
review-gene-report	HITL: human verifies http://localhost:8080 before trusting report
public-data-to-mcp-tutorial	Onboarding: public data → local BioInsight API → MCP in Cursor (no Java edits)

Human-in-the-loop

Layer	How
BioInsight UI	http://localhost:8080 — visual ground truth
MCP prompt	review-gene-report
Embabel agent	BIOINSIGHT_HITL_ENABLED=true → WaitFor approval form (not for default MCP)

Guide: docs/HUMAN_IN_THE_LOOP.md · MCP resource bioinsight://human-in-the-loop

KG RAG bridge (Phase 4, optional)

Set KG_RAG_ENABLED=true and run kg-rag-demo on port 8001:

Tool	API
kg_rag_health	GET /api/v1/health
kg_rag_ask	POST /api/v1/ask

Example questions

• “What are the top disease associations for BRCA1?” → investigate_gene_symbol or get_gene_diseases
• “Compare BRCA1 and TP53” → compare_genes
• “Which genes target breast cancer?” → search_diseases then get_disease_genes

Prerequisites

• Java 21 and Maven 3.9+
• bioinsight-graph API running on port 8000 (Neo4j seeded)
• OPENAI_API_KEY — required by Embabel at startup (OpenRouter free models work; see .env.example)

Quick start

1. Start BioInsight Graph API

From your bioinsight-graph clone:

cd C:\Users\Lordwill\Documents\projects\bioinsight-graph
docker compose up -d neo4j
# seed once if needed — see bioinsight-graph README
cd api
py -3 -m venv .venv
.\.venv\Scripts\pip install -r requirements.txt
.\.venv\Scripts\uvicorn app.main:app --reload --port 8000

Verify: http://localhost:8000/api/v1/health

2. Configure and run MCP server

cd C:\Users\Lordwill\Documents\projects\embabel-mcp
copy .env.example .env
# Edit .env — set OPENAI_API_KEY (OpenRouter key is fine)

$env:OPENAI_API_KEY = "your-key"
$env:OPENAI_BASE_URL = "https://openrouter.ai"
$env:BIOINSIGHT_API_BASE_URL = "http://localhost:8000/api/v1"

mvn spring-boot:run

SSE endpoint: http://localhost:1337/sse

3. Connect Cursor

Merge into .cursor/mcp.json (see cursor-mcp.example.json):

{
  "mcpServers": {
    "bioinsight-graph": {
      "command": "npx",
      "args": ["-y", "mcp-remote", "http://localhost:1337/sse"]
    }
  }
}

4. Test with MCP Inspector

npx @modelcontextprotocol/inspector

Connect to http://localhost:1337/sse, then try compare_genes with symbols=BRCA1,TP53 or open prompt summarize-gene-targets.

Context budget

Large MCP servers inflate the IDE context window; the 120k-token limit is on the host model, not per tool. This repo defaults to full-fidelity responses (no truncation):

• BIOINSIGHT_MCP_TOOL_PROFILE — minimal / standard / full (main lever)
• BIOINSIGHT_MCP_COMPACT_MODE — off (default), warn, or opt-in truncate
• Workflow dossiers are never truncated; optional advisory footer only

See docs/CONTEXT_BUDGET.md and docs/RESPONSE_POLICY.md. MCP resource: bioinsight://context-policy.

Configuration

Variable	Default	Description
BIOINSIGHT_API_BASE_URL	http://localhost:8000/api/v1	FastAPI base URL
BIOINSIGHT_WEB_UI_URL	http://localhost:8080	Deep links in markdown dossiers
BIOINSIGHT_MCP_TOOL_PROFILE	standard	minimal | standard | full — tools exposed at startup
BIOINSIGHT_MCP_COMPACT_MODE	off	off | warn | truncate (truncate not recommended)
BIOINSIGHT_MCP_MAX_RESPONSE_CHARS	0	Hard cap only when compact-mode=truncate
BIOINSIGHT_MCP_WARN_RESPONSE_CHARS	12000	Advisory footer threshold (chars); does not cut content
MCP_SERVER_PORT	1337	HTTP port for SSE
OPENAI_API_KEY	—	Required (OpenAI or OpenRouter)
OPENAI_BASE_URL	https://openrouter.ai	OpenAI-compatible API base
EMBABEL_DEFAULT_LLM	x-ai/grok-4.1-fast:free	Default model id
KG_RAG_ENABLED	false	Enable kg-rag-demo tools
KG_RAG_API_BASE_URL	http://localhost:8001/api/v1	KG RAG FastAPI base
BIOINSIGHT_MCP_METRICS_LOG_LEVEL	DEBUG	M12: log bioinsight.mcp.metrics per tool response (chars, profile)

Docker

Full stack (with bioinsight-graph)

Clone both repos side by side, add OPENAI_API_KEY to bioinsight-graph .env, then:

cd bioinsight-graph
docker compose -f docker-compose.yml -f docker-compose.mcp.yml up --build

Service	URL
MCP (SSE)	http://localhost:1337/sse
BioInsight Web UI	http://localhost:8080
API	http://localhost:8000/docs

MCP only (API already on :8000)

cd embabel-mcp
copy .env.example .env
# set OPENAI_API_KEY
docker compose up --build

Or a single image:

docker build -t embabel-mcp .
docker run --rm -p 1337:1337 \
  -e OPENAI_API_KEY \
  -e BIOINSIGHT_API_BASE_URL=http://host.docker.internal:8000/api/v1 \
  embabel-mcp

Documentation

Doc	Topic
docs/ROADMAP.md	Implementation tasks (M1–M13)
docs/USE_CASES.md	Worked examples
docs/RESPONSE_POLICY.md	When compaction runs; workflow exemption; config
docs/CONTEXT_BUDGET.md	Characters vs tokens; staying under host 120k
docs/HUMAN_IN_THE_LOOP.md	Review workflows
docs/MCP_DEMO.md	Cursor → dossier → UI verify (M10)
ECOSYSTEM_CONTEXT	Compact handoff for new agent sessions

Development

mvn test
mvn spring-boot:run

Related repos

• bioinsight-graph — Neo4j graph, FastAPI, React UI
• Portfolio roadmap — cross-repo plan · kg-rag ROADMAP
• kg-rag-demo — optional document RAG (KG_RAG_ENABLED=true)

License

MIT © 2026 LordKay-sudo
