HT32 Panel

Front-panel display and LED control for mini PCs with HT32-based LCD and RGB LEDs (Skullsaints Agni, AceMagic S1, etc.).

Faces

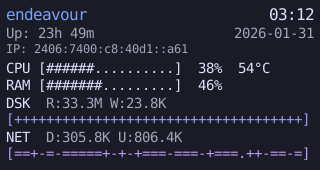

Landscape

ASCII	Arcs	Clocks

Digits	Professional

Portrait

Arcs	Clocks	Digits

ASCII	Professional

Themes

Faces support color themes: Ember, Hacker, Nord, Solarized Dark, Solarized Light, and Tokyo Night.

Complications

Complications are optional display elements: Time, Date, IP Address, Network activity, Disk I/O, CPU Temperature, and Hostname.

Features

• Daemon (ht32paneld): D-Bus service with HTMX web UI
• CLI (ht32panelctl): D-Bus client for daemon control
• Applet: System tray for GNOME/KDE
• Web UI: Monitor and control the panel from a browser

Hardware

Component	Interface	Details
LCD Display	USB HID	VID:PID 04D9:FD01, 320x170 RGB565
LED Strip	Serial	CH340, 10000 baud

Installation

Download the latest release from GitHub Releases.

AppImage

chmod +x ht32-panel-*-x86_64.AppImage
./ht32-panel-*-x86_64.AppImage

Linux Binary

tar -xzf ht32-panel-*-x86_64-linux.tar.gz
./ht32paneld config/default.toml

NixOS (System Service)

{
  inputs.ht32-panel.url = "github:ananthb/ht32-panel";
}

{ inputs, ... }:
{
  imports = [ inputs.ht32-panel.nixosModules.default ];

  services.ht32-panel = {
    enable = true;
  };
}

Home Manager (User Service)

Run the daemon as a user service with the session D-Bus bus.

Add the input to your flake:

{
  inputs.ht32-panel.url = "github:ananthb/ht32-panel";
}

In your Home Manager configuration:

{ inputs, ... }:
{
  imports = [ inputs.ht32-panel.homeManagerModules.default ];

  services.ht32-panel = {
    enable = true;
    applet.enable = true;  # optional system tray applet
  };
}

For hardware access, also add to your NixOS configuration:

{ inputs, ... }:
{
  imports = [ inputs.ht32-panel.nixosModules.udevRules ];

  services.ht32-panel.udevRules = {
    enable = true;
    group = "users";  # grant access to users group
  };
}

Nix

nix run github:ananthb/ht32-panel

From Source

git clone https://github.com/ananthb/ht32-panel
cd ht32-panel
cargo build --release

Usage

# Start daemon
ht32paneld config/default.toml

# CLI (requires daemon)
ht32panelctl lcd orientation landscape
ht32panelctl led set rainbow --intensity 3 --speed 3

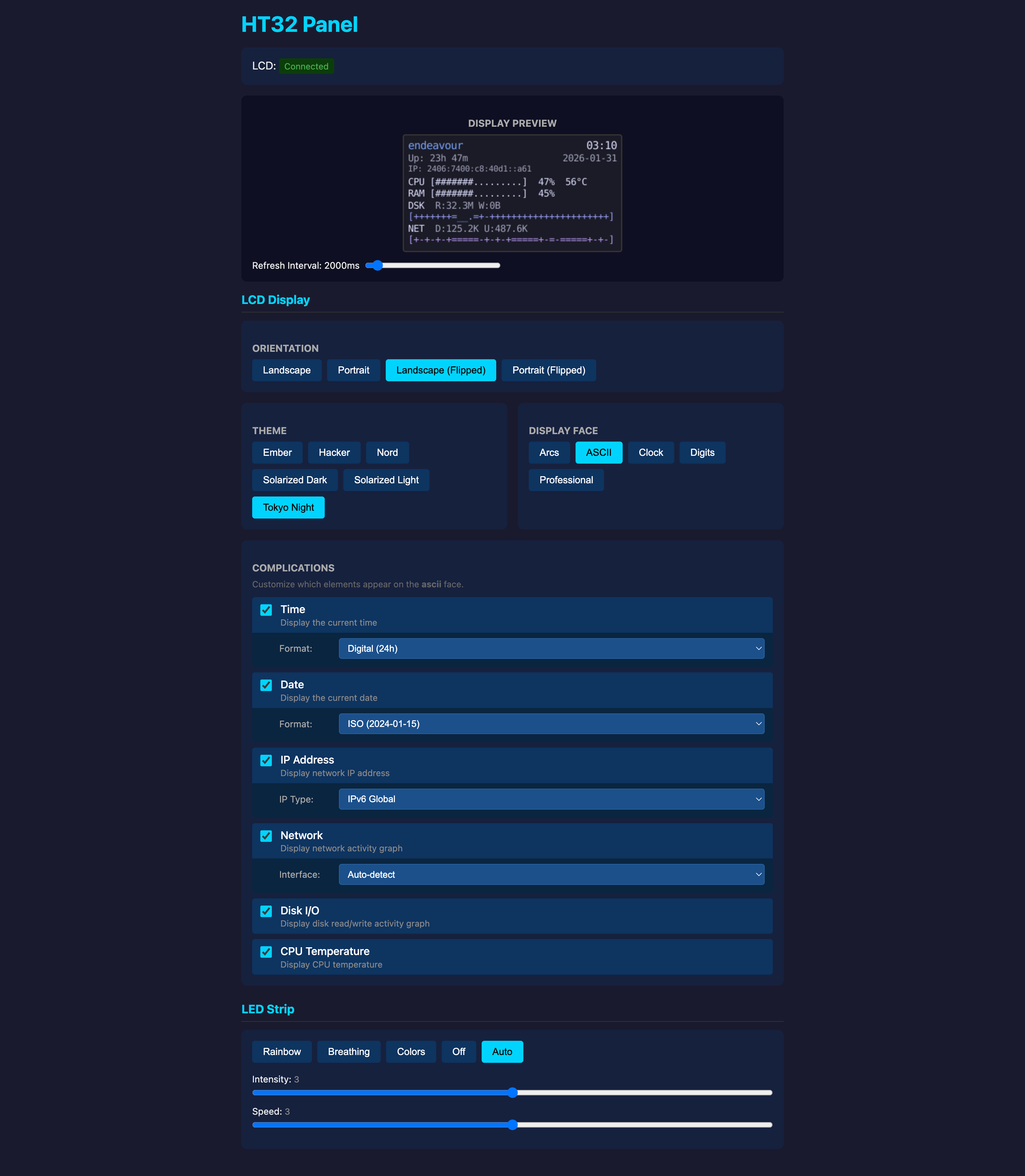

Web UI

The daemon includes a web UI for monitoring and controlling the panel.

To enable the web UI, set web.enable = true in the config file.

D-Bus

The daemon exposes org.ht32panel.Daemon1. By default:

• NixOS module: Uses the system bus
• Home Manager module: Uses the session bus

Configure with services.ht32-panel.dbus.bus ("system", "session", or "auto").

Acknowledgement

My thanks for the ideas and source code from github.com/tjaworski/AceMagic-S1-LED-TFT-Linux.

License

ht32-panel is licensed under the terms of the AGPL license. See LICENSE for the full license text.

Copyright © Ananth Bhaskararaman 2026
