AgentCore Memory Browser

A web interface for browsing and exploring Amazon Bedrock AgentCore Memory resources. This application provides a user-friendly way to interact with AgentCore Memory data through both control plane and data plane APIs.

For more information on these implementaitons, see this blog post series:

Visualizing AI Agent Memory: Building a Web Browser for Amazon Bedrock AgentCore Memory

Features

• Memory Overview: Browse all available AgentCore Memory resources with metadata
• Strategy-Specific Operations: Each memory strategy has its own dedicated operations interface
• Smart Namespace Handling: Automatically substitutes strategy IDs in namespace templates with editable paths
• Event Listing: List events for specific sessions and actors
• Memory Records: Browse memory records by namespace with persistent user edits
• Memory Retrieval: Search and retrieve memory records with queries
• Copy Functionality: Quick copy buttons for Memory IDs, ARNs, and namespace values
• Interactive UI: Modern FastAPI backend with responsive Bootstrap frontend
• JSON Viewer: Auto-expanding JSON viewer with tree view and syntax highlighting
• Security: HTML escaping for user content to prevent code injection

Prerequisites

• Python 3.13+
• AWS CLI configured with proper credentials
• AWS permissions for:
  • bedrock-agentcore-control:ListMemories
  • bedrock-agentcore-control:GetMemory
  • bedrock-agentcore:ListEvents
  • bedrock-agentcore:ListMemoryRecords
  • bedrock-agentcore:RetrieveMemoryRecords

Installation

Option 1: Global Tool Installation (Recommended)

Install as a global command-line tool using uv:

From GitHub repository:

uv tool install git+https://github.com/danilop/agentcore-memory-browser.git

From local directory (if you have the source):

uv tool install .

Then run anywhere with:

agentcore-memory-browser

Option 2: Local Development Setup

1. Clone the repository:

git clone https://github.com/danilop/agentcore-memory-browser.git
cd agentcore-memory-browser

2. Install dependencies using uv:

uv sync

Usage

Global Tool (if installed with uv tool install)

agentcore-memory-browser

Local Development

Option A: Direct Python execution

uv run python main.py

Option B: Using project script name

uv run agentcore-memory-browser

The application will automatically open in your browser at http://localhost:8000

Application Structure

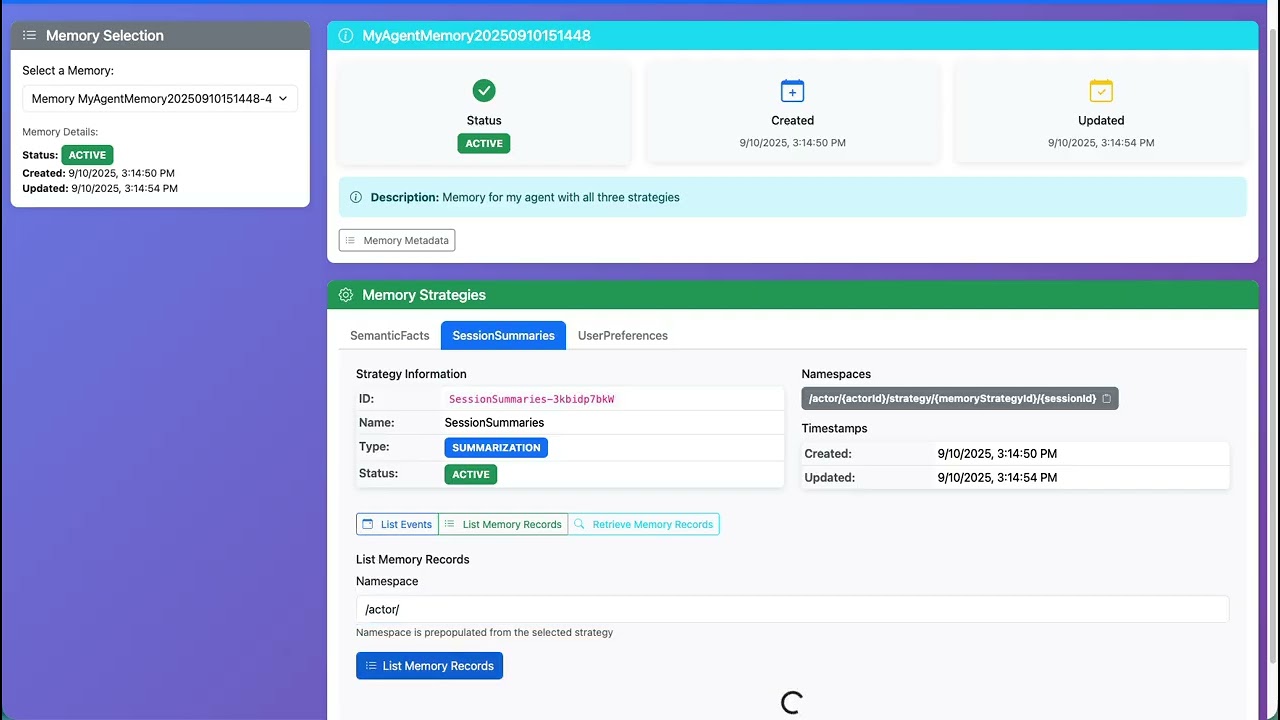

Main Interface

1. Sidebar: Memory selection dropdown showing all available memories
2. Memory Overview: Displays selected memory metadata and status with expandable details
3. Memory Strategies: Tabbed interface showing each strategy with:
   • Strategy details (status, type, description)
   • Available namespaces
   • Strategy-specific memory operations

Strategy-Specific Memory Operations

Each strategy tab contains three operation sub-tabs:

1. List Events

• Purpose: List events for specific sessions and actors
• Requirements: Session ID, Actor ID
• Configuration: Result limit (1-100)

2. List Memory Records

• Purpose: Browse all memory records in a namespace
• Requirements: Namespace path (pre-filled with strategy ID, editable)
• Configuration: Result limit (1-100)
• Note: Replace {actorId} and {sessionId} placeholders with actual values

3. Retrieve Memory Records

• Purpose: Search memory records using queries
• Requirements: Namespace path and search query
• Configuration: Result limit (1-50)
• Note: Replace {actorId} and {sessionId} placeholders with actual values

API Structure

The application uses two main AWS service clients:

Control Plane APIs (bedrock-agentcore-control)

• list_memories(): Get all memory resources
• get_memory(memory_id): Get detailed memory information

Data Plane APIs (bedrock-agentcore)

• list_events(): List events for a memory
• list_memory_records(): List memory records by namespace
• retrieve_memory_records(): Search memory records with queries

Configuration

AWS Credentials

Ensure your AWS credentials are configured via:

• AWS CLI: aws configure
• Environment variables: AWS_ACCESS_KEY_ID, AWS_SECRET_ACCESS_KEY
• IAM roles (if running on EC2)

Region

The application uses your default AWS region. Set it with:

export AWS_DEFAULT_REGION=us-east-1

Development

Project Structure

agentcore-memory-browser/
├── backend.py                   # FastAPI backend application
├── main.py                      # Application runner
├── templates/
│   └── index.html              # Main web interface
├── static/
│   ├── css/
│   │   └── styles.css          # Custom styling
│   └── js/
│       └── app.js              # JavaScript application logic
├── pyproject.toml              # Dependencies and configuration
└── README.md                   # This file

Dependencies

• fastapi: Modern web framework for building APIs
• uvicorn: ASGI server for FastAPI
• jinja2: Templating engine for HTML rendering
• boto3: AWS SDK for Python
• python-multipart: For handling form data

API Endpoints

• GET /: Main web interface
• GET /api/health: Health check
• GET /api/memories: List all memories
• GET /api/memories/{id}: Get memory details
• GET /api/memories/{id}/events: List memory events
• GET /api/memories/{id}/records: List memory records
• POST /api/memories/{id}/retrieve: Retrieve memory records with query

Troubleshooting

Common Issues

1. No memories found: Verify AWS credentials and permissions for AgentCore services
2. Region errors: Ensure you're in the correct AWS region where AgentCore Memory is configured
3. Permission denied: Check IAM permissions for AgentCore services
4. Validation errors: Replace placeholder values ({actorId}, {sessionId}) with actual values in namespace fields
5. Connection errors: Verify network connectivity to AWS
6. Port already in use: Change the port in main.py if 8000 is occupied

Debug Mode

View server logs in the terminal when running the application. FastAPI provides detailed error messages and request logging.

License

This project is licensed under the MIT License.
