Latest News 🔥
- [2026/03] OpenOptics has been accepted by NSDI'26!
OpenOptics is a general framework for realizing different optical data center network architectures in a plug-and-play manner. With OpenOptics, users can deploy customized optical data center networks on the testbed, emulation, or simulation with ~10 lines of python code. Under the hood, user configurations are converted to control plane programs and deployed to the underlining OCSes and P4 switches.
Supported backends:
- Mininet — full software emulation using BMv2 software switches and Mininet networks.
- Tofino — deployment on Intel Tofino2 programmable switches (SDE 9.12.0). See docs/tofino-backend.md.
- ns-3 — packet-level simulation (scaffold; under active development).
OpenOptics has two installation paths — pick the one that matches the backend you need.
The ymlei/openoptics:latest image ships a fully built BMv2, Mininet, Redis,
and all native dependencies. Add the Python package on top with pip.
# If you're on a remote machine, forward the dashboard port first:
ssh -L localhost:8001:localhost:8001 YOUR_MACHINE
# Pull and enter the container:
sudo docker pull ymlei/openoptics:latest
sudo docker run --privileged -dit --network host --name openoptics \
ymlei/openoptics:latest /bin/bash
sudo docker exec -it openoptics bash
# Inside the container:
pip install "openoptics-dcn[mininet]"
openoptics-gen-examples # copies ./examples/ into cwd
python3 examples/mininet_routing_direct_perhop.pyThe dashboard (Redis + Django migrations + runserver) starts automatically when your script creates a BaseNetwork with use_webserver=True (the default).
Then try h0 ping h1 / h2 ping h3 inside the OpenOptics CLI.
VS Code Dev Containers also works — Ctrl+Shift+P → "Dev Containers: Reopen in
Container" after git cloneing this repo (.devcontainer/ wires up the same
image).
If you'd rather build the image yourself or install editable from source,
see the build-from-source section in docs/installation.md.
The Tofino backend only needs Python on your workstation — the heavy dependencies (Intel SDE, P4 compiler) live on the switches and are invoked over SSH.
pip install "openoptics-dcn[tofino]"
openoptics-gen-config # writes ./openoptics-tofino.toml
# edit the placeholders (USER, jumphost.example.com, IPs, MACs), then run
# a Tofino example — see docs/tofino-backend.md for a full walkthrough.See docs/tofino-backend.md for prerequisites and config details.
After pip install, these commands seed your working directory:
openoptics-gen-examples # examples/
openoptics-gen-tutorials # tutorials/
openoptics-gen-config # openoptics-tofino.toml (Tofino config template)python3 examples/mininet_routing_direct_perhop.py
Then you can try ping in your optical DCN,
h0 ping h1
h2 ping h3

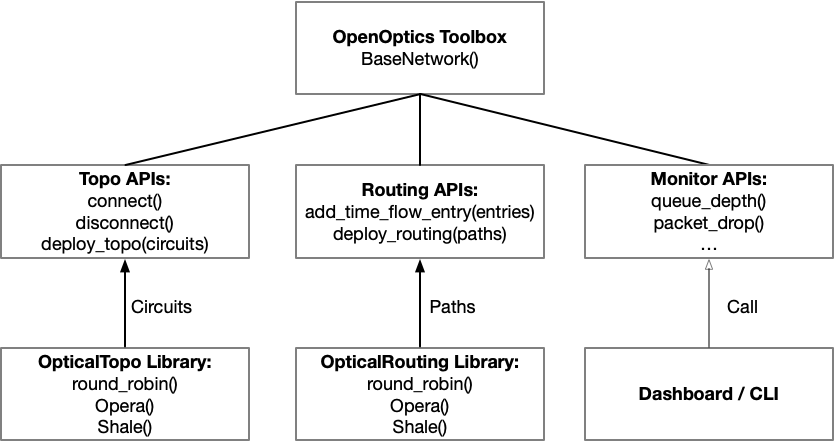

OpenOptics User APIs are located in openoptics/Toolbox.py.
This file defines a number of useful functions for creating optical topologies, deploying routing, and monitoring the network.
Every OpenOptics network is a BaseNetwork object:
net = Toolbox.BaseNetwork(
name="my_network",
backend="Mininet",
nb_node = 4,
time_slice_duration_ms = 32, # in ms
use_webserver=True)You can use connect(node1,port1,node2,port2,time_slice) to connect ports of two nodes at the given time slice.
net.connect(node1=0,port1=0,node2=1,port2=0,time_slice=0)
net.connect(node1=2,port1=0,node2=3,port2=0,time_slice=0)
net.connect(node1=0,port1=0,node2=2,port2=0,time_slice=1)
net.connect(node1=1,port1=0,node2=3,port2=0,time_slice=1)
net.deploy_topo()Or you can use provided high-level topology generators:
circuits = OpticalTopo.round_robin(nb_node=8)
net.deploy_topo(circuits)or
circuits = OpticalTopo.opera(nb_node = 8, nb_link=2)
net.deploy_topo(circuits)Next, you can define routing by adding time-flow table entries (as forwarding tables in electrical DCNs) add_time_flow_entry(node_id, entries, routing_mode).
Or use provided high-level routing generators:
paths = OpticalRouting.routing_direct(net.get_topo())
net.deploy_routing(paths, routing_mode="Per-hop")Once you have created a BaseNetwork object, and defined its topology and routing, start the network by simply calling net.start().
Now run your Python file and your first optical DCN is deployed!
net.start() launches a command line interface defined in src/OpticalCLI.py.
This CLI is an extension of Mininet's CLI, with added support for optical DCNs, e.g. to query the number of queued packets in switches and the network's packet loss rate.
You can find example scripts configuring different architectures under examples/ — or, after pip install, run openoptics-gen-examples to copy them into your current directory.

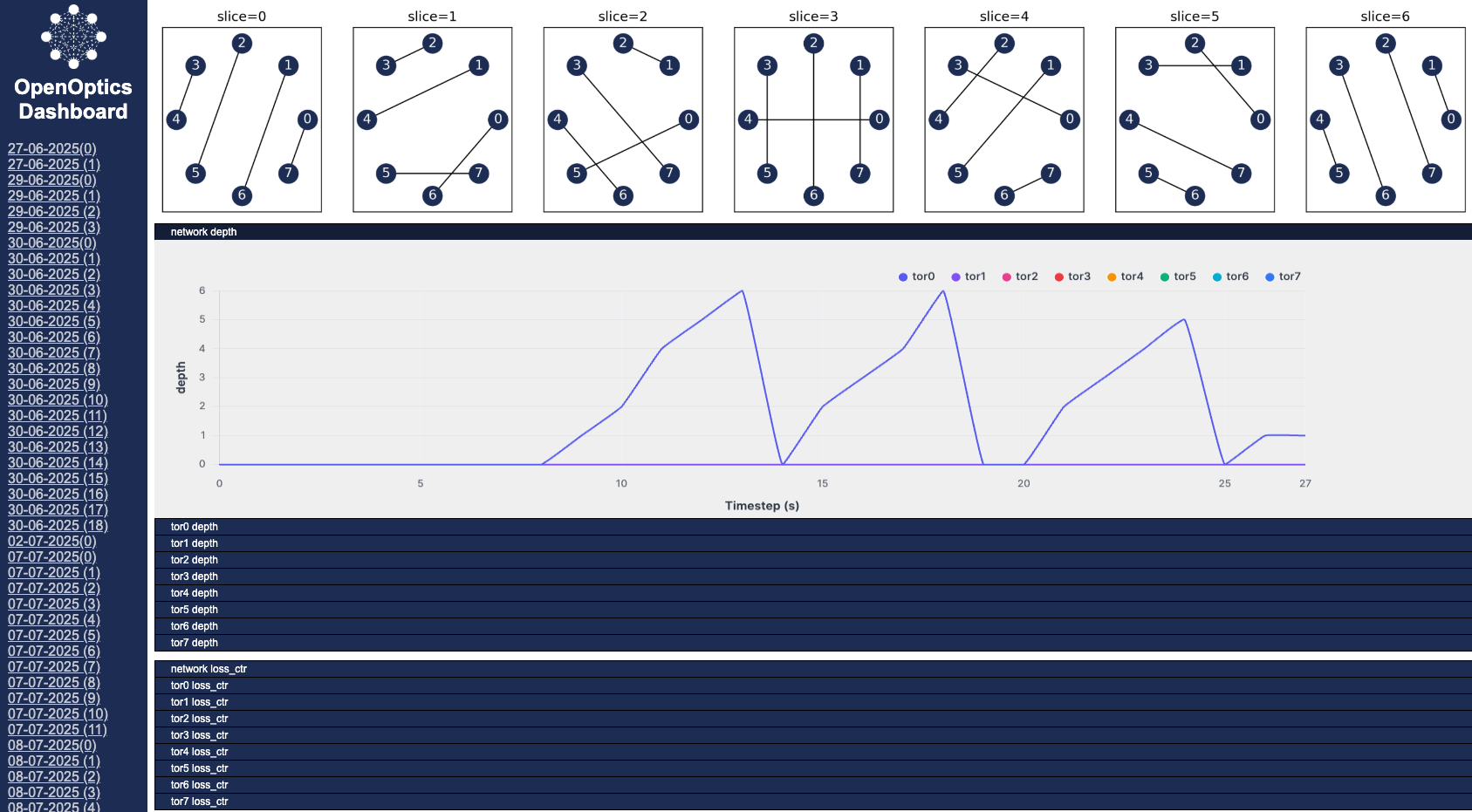

The dashboard starts automatically when you create a BaseNetwork with use_webserver=True (the default) — Redis is launched and Django migrations are applied in-process, so no separate setup step is needed.
In your web browser, visit http://0.0.0.0:8001 to view the dashboard.
The dashboard displays the network topology, along with realtime graphs of network performance served via WebSockets.
Note: If you're running OpenOptics at a remote machine, make sure to enable port forwarding by passing -L8001:0.0.0.0:8001 to ssh.
If you use OpenOptics for your research, please cite our paper:
@misc{lei2025openopticsopenresearchframework,
title={OpenOptics: An Open Research Framework for Optical Data Center Networks},
author={Yiming Lei and Federico De Marchi and Jialong Li and Raj Joshi and Balakrishnan Chandrasekaran and Yiting Xia},
year={2025},
eprint={2411.18319},
archivePrefix={arXiv},
primaryClass={cs.NI},
url={https://arxiv.org/abs/2411.18319},
}- For technical questions and feature requests, please open a GitHub Issues
- For discussions and collaboration, contact us at ylei@mpi-inf.mpg.de
