luajit: support statically linked Tarantool on amd64 and arm64

[dalehamel]

Summary

Ports Shopify's production Tarantool fixes for the LuaJIT unwinder onto Parca's merged extractor stack and includes the runtime corrections found while building deterministic coredump coverage in #317.

Final head: 39dd4c54 (rebased onto parca-dev/main@0cf69159).

This builds on the merged extractor series:

• luajit: migrate x86 lua_close & jit_checktrace extractors to asm/amd #276 — migrate core x86 LuaJIT extractors to asm/amd
• asm/amd: sign-extend 32-bit memory displacements #314 — sign-extend x86 disp32 centrally in asm/amd
• luajit: migrate x86 arg-to-call extractors to asm/amd interpreter #277 — migrate the remaining x86 argument extractors

The first five commits are the curated Tarantool runtime port through Shopify's deployed revision 7916b625. The final three commits select the correct runtime-specific x64 C-frame layout, classify Tarantool's proven arm64 fiber trampoline as a synthetic stack root, and rebuild both eBPF blobs. The obsolete intermediate blob-only rebuild was dropped during the rebase; the final blobs were regenerated from the complete source against current main. #317 remains a separate one-commit fixture/documentation change.

This follows the request to feed downstream fixes back through the Parca fork for the next upstream batch of open-telemetry#1236.

Production evidence

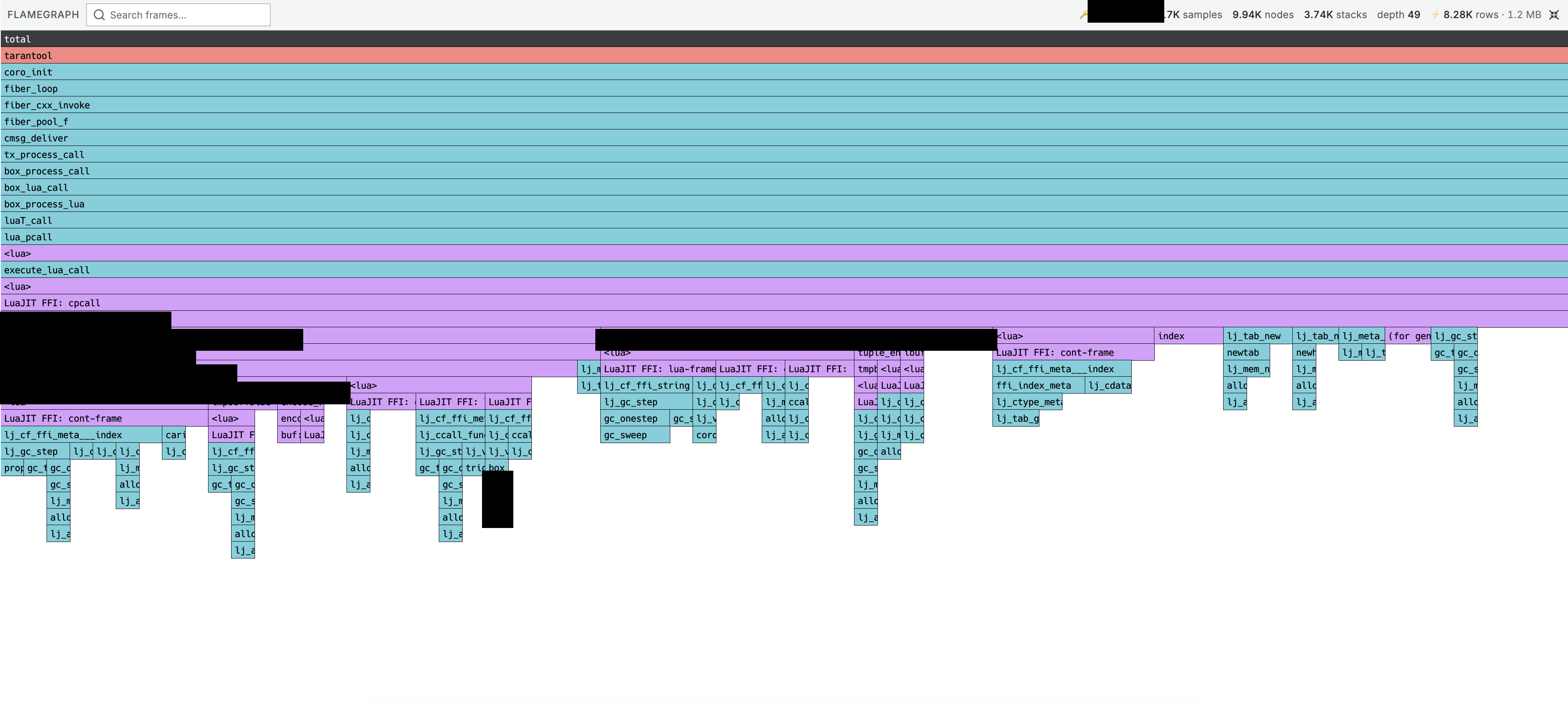

The following completed production profile shows native Tarantool frames handing through lua_pcall into built-in Lua, application Lua, and LuaJIT FFI frames. The query identifier and application-specific Lua/schema labels are covered with solid opaque redactions; the image contains no node, cluster, or schedule identifier.

Why Tarantool needs this

Parca's LuaJIT work primarily targets a dynamically linked OpenResty libluajit-5.1.so. Tarantool differs in several relevant ways:

• LuaJIT is statically linked into the tarantool executable.
• VM symbols such as lj_vm_asm_begin and lj_vm_exit_handler are hidden in .symtab.
• A large static binary defeats the existing first-large-unwind-gap VM heuristic.
• Tarantool inserts global_State.mem_L between cur_L and jit_base.
• Tarantool x64 stores its previous C-frame link at 48 bytes, while standard LuaJIT/OpenResty x64 uses 32 bytes.
• Lua runs on fibers; the arm64 coro_startup assembly trampoline has no CFI and is a synthetic stack root.

Changes

Tarantool extraction and native handback

• Detect the statically linked tarantool executable in the existing LuaJIT loader.
• Scan static and dynamic symbols once and anchor the VM interval to lj_vm_asm_begin when available.
• Extract global_State.jit_base independently from cur_L:
  • amd64: symbolically match the DISPATCH-relative clear in lj_vm_exit_handler with asm/amd and asm/amd: sign-extend 32-bit memory displacements #314's centralized signed-disp32 handling.
  • arm64: match the x22-relative str xzr in the exit handler.
• Keep cur_L+8 as the stripped OpenResty fallback, but fail Tarantool attachment if extraction is unavailable because that fallback is known to be wrong there.
• Derive interpreter/JIT native-handback C-frame values from the VM interval's unwind data and handle both SP- and FP-based CFA rules.
• Step over the interpreter gate when handing the bottom Lua frame back to the native unwinder.
• Guard a transient NULL jit_base instead of subtracting from it.

Runtime-specific previous C-frame layout

LuaJITProcInfo now carries cframe_prev_offset, selected by the same exact executable-name contract used by the loader:

architecture/runtime	previous C-frame offset
amd64 standard LuaJIT/OpenResty	32 bytes (4*8)
amd64 Tarantool	48 bytes (6*8)
arm64 standard LuaJIT/OpenResty/Tarantool	0

A zero field retains backward-compatible architecture-default behavior in eBPF, so old or zero-initialized map records remain valid. The Go/C ABI size is asserted as 0xe; generated Go types and both eBPF blobs are synchronized.

Exact arm64 synthetic-root classification

Only the proven Tarantool trampoline becomes UnwindInfoStop. Detection requires all of:

1. AArch64 ELF input.
2. A .symtab symbol named exactly coro_startup.
3. The exact 12-byte mov x0,x20; blr x19; b trampoline signature.

The ELF string-table prefilter is capped at 16 MiB to match VisitSymbols; malformed/oversized tables, bad links, invalid addresses, overflow, and instruction mismatches fail closed. STOP and restore boundaries are marked UnwindHintKeep so generic delta compaction cannot erase the exact interval. Arbitrary missing-CFI ranges remain UnwindInfoInvalid.

Scope

Intentionally omitted:

• Shopify's Ruby JIT / omnibus history.
• The newer Config.Executables and UsesAnonymousMappings() plumbing, which is not present on this Parca stack. Exact basename tarantool matches the existing loader-recognition contract.
• The old non-GC64 x86 sameReg workaround; supported Tarantool builds are GC64 and luajit: migrate x86 lua_close & jit_checktrace extractors to asm/amd #276 removed that extractor path.
• Coredump fixtures and external artifacts, kept in stacked coredump: test Tarantool LuaJIT unwinding on amd64 and arm64 #317.

Validation

Post-rebase validation was run in architecture-matched Linux environments:

• Full non-integration go test ./... on linux/arm64, plus focused interpreter/luajit, support, and nativeunwind/elfunwindinfo coverage on linux/amd64 and linux/arm64.
• Focused extractor, mapping, proto, C-frame-offset, root-signature, malformed-input, overflow, and exact-boundary regressions on both architectures.
• TestOffsets and TestStructure against all 18 cached OpenResty binaries from the amd64 and arm64 build matrices.
• Live native-amd64 OpenResty coverage for fib and comp on 1.19 and rolling Alpine images. The old 1.17 image exits with SIGILL under the x86 QEMU VM, but remains covered by the offline binary matrix.
• A native-arm64 diagnostic comparison recovered equivalent Lua stacks on the Parca baseline and this branch, but all samples ended in abort markers in the nested-Docker harness; it is not counted as a passing live case. Arm64 acceptance comes from the exact coredump and binary matrices instead.
• Exact Tarantool coredump goldens on both architectures via coredump: test Tarantool LuaJIT unwinding on amd64 and arm64 #317.
• Broad coredump regression matrix after the generic native-root overlay, using Parca's configured GCS fallback for fork artifacts:
  • amd64: 92/92 passed.
  • arm64: 80/80 passed.
  • The exact Tarantool fixtures passed from a cache seeded only with coredump: test Tarantool LuaJIT unwinding on amd64 and arm64 #317's v3 bundle.
• eBPF clang-format lint, generated-type consistency, gofmt, and git diff --check.
• Forced clean dual-architecture eBPF rebuilds in independent clang-17 containers reproduced the committed blobs byte-for-byte:
  • amd64 SHA-256: e807bc2bd92380cb0983190d7e11f8088d5381364b04429c88c97ea018bee09d
  • arm64 SHA-256: 2f95d1576241a12682a5b9bbed6903002969f97fad1c175294c6400850ec507b

The branch was rebased onto parca-dev/main@0cf69159. Range-diff preserved every source commit; only the superseded intermediate blob rebuild was intentionally omitted. Both PRs remain ready for review.
